Spring Boot Reactive is a framework that makes it easy to build reactive applications using Spring Boot. It provides a number of features that make it easier to develop, test, and deploy reactive applications, including:

Reactive web support: Spring Boot Reactive provides support for building reactive web applications using Spring WebFlux.
Reactive messaging support: Spring Boot Reactive provides support for building reactive messaging applications using Spring Cloud Stream.
Reactive testing support: Spring Boot Reactive provides support for testing reactive applications using Spring Boot Test.
Reactive deployment support: Spring Boot Reactive provides support for deploying reactive applications to a variety of environments, including cloud environments.
Flux and Mono are two reactive types that are used in Spring Boot Reactive applications. They are both implementations of the Publisher interface, which means that they can emit a sequence of elements to subscribers. The main difference between Flux and Mono is that Flux can emit zero or more elements, while Mono can only emit zero or one element. This means that Flux is more general-purpose than Mono, but it can also be more complex to use.

GraphQL is an open-source query language and runtime for APIs (Application Programming Interfaces). It was developed by Facebook and released in 2015. GraphQL provides a flexible and efficient way to define, query, and manipulate data in APIs.

Technology

Spring Boot 3.1.1
GraphQL
MongoDB
Docker
Maven
IntelliJ IDEA

Configuration Spring Boot project :

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
       <groupId>org.springframework.boot</groupId>
       <artifactId>spring-boot-starter-parent</artifactId>
       <version>3.1.1</version>
       <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.henry</groupId>
    <artifactId>spring-data-mongodb-graphql-reactive</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-data-reactive-mongodb</name>
    <description>Demo project for Spring Boot with MongoDB</description>
    <properties>
       <java.version>17</java.version>
    </properties>
    <dependencies>
       <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-data-mongodb-reactive</artifactId>
       </dependency>
       <!-- https://mvnrepository.com/artifact/de.flapdoodle.embed/de.flapdoodle.embed.mongo
       <dependency>
          <groupId>de.flapdoodle.embed</groupId>
          <artifactId>de.flapdoodle.embed.mongo.spring30x</artifactId>
          <version>4.7.0</version>
       </dependency>-->

       <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-webflux</artifactId>
       </dependency>

       <dependency>
          <groupId>org.projectlombok</groupId>
          <artifactId>lombok</artifactId>
       </dependency>
       <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-graphql</artifactId>
       </dependency>

       <!-- https://mvnrepository.com/artifact/com.graphql-java/graphql-java-tools -->
       <dependency>
          <groupId>com.graphql-java</groupId>
          <artifactId>graphql-java-tools</artifactId>
          <version>5.2.4</version>
       </dependency>

       <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-test</artifactId>
          <scope>test</scope>
       </dependency>
       <dependency>
          <groupId>io.projectreactor</groupId>
          <artifactId>reactor-test</artifactId>
          <scope>test</scope>
       </dependency>
    </dependencies>

    <build>
       <plugins>
          <plugin>
             <groupId>org.springframework.boot</groupId>
             <artifactId>spring-boot-maven-plugin</artifactId>
          </plugin>
       </plugins>
    </build>

</project>

application.yml:
# graphql Configuration
graphql:
  graphiql:
    enabled: true

# mongodb Configuration
spring:
  data:
    mongodb:
      uri: mongodb://test:test@localhost:27017/tech_notes?authSource=admin


SchemaSpring for GraphQL application, create a directory src/main/resources/graphql. Add a new file schema.graphqls to this folder with the following content:


type Query {
    getAllCategories: [Category]
    getCategoryById(id: ID): Category
}

type Mutation {
    createCategory(input: CategoryInput): Category
    updateCategory(id: ID, input: CategoryInput): Category
    deleteCategory(id: ID): Boolean
    deleteAllCategories: Boolean
}

type Category {
    id: ID
    title: String
    posts: [String]
}

input CategoryInput {
  id: Int
  title: String
  posts: [String]
}

Spring Data Reactive GraphQL Application

Config

package com.henry.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.reactive.config.CorsRegistry;
import org.springframework.web.reactive.config.EnableWebFlux;
import org.springframework.web.reactive.config.WebFluxConfigurer;

@Configuration
@EnableWebFlux
public class WebConfig implements WebFluxConfigurer {
    @Override
    public void addCorsMappings(CorsRegistry corsRegistry) {
        corsRegistry.addMapping("/**")
                .allowedOrigins("*")
                //.allowedMethods("POST")
                .maxAge(3600);
    }
}

Model

package com.henry.model;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.data.annotation.Id;
import org.springframework.data.mongodb.core.mapping.Document;

import java.util.List;

@AllArgsConstructor
@NoArgsConstructor
@Data
@Document(collection = "categories")
public class Category {

    @Id
    private long id;
    private String title;
    private List<String> posts;
}

package com.henry.model;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.data.annotation.Id;
import org.springframework.data.mongodb.core.mapping.Document;

@AllArgsConstructor
@NoArgsConstructor
@Data
@Document(collection = "cat_sequences")
public class Sequence {
    @Id
    private String id;
    private long value;
}


Repository
package com.henry.repository;

import com.henry.model.Category;
import org.springframework.data.mongodb.repository.ReactiveMongoRepository;

public interface CategoryRepository extends ReactiveMongoRepository<Category, Long> {
}

package com.henry.repository;

import com.henry.model.Sequence;
import org.springframework.data.repository.reactive.ReactiveCrudRepository;

public interface SequenceRepository extends ReactiveCrudRepository<Sequence, String> {
}


Service
package com.henry.service;

import com.henry.model.Category;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

public interface CategoryService {
    public Flux<Category> getAllCategories();
    public Mono<Category> getCategoryById(Long id);
    public Mono<Category> createCategory(Category category);
    public Mono<Category> updateCategory(Long id, Category updatedCategory);

    public Mono<Void> deleteCategory(Long id);

    public Mono<Void> deleteAllCategories();
}

Resolver

package com.henry.resolver;

import com.coxautodev.graphql.tools.GraphQLMutationResolver;
import com.coxautodev.graphql.tools.GraphQLQueryResolver;
import com.henry.model.Category;
import com.henry.model.Sequence;
import com.henry.repository.CategoryRepository;
import com.henry.repository.SequenceRepository;
import com.henry.service.CategoryService;
import org.springframework.stereotype.Component;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@Component
public class CategoryResolver implements CategoryService, GraphQLQueryResolver, GraphQLMutationResolver {

    private final SequenceRepository sequenceRepository;
    private final CategoryRepository categoryRepository;

    public CategoryResolver(SequenceRepository sequenceRepository, CategoryRepository categoryRepository) {
        this.sequenceRepository = sequenceRepository;
        this.categoryRepository = categoryRepository;
    }

    @Override
    public Flux<Category> getAllCategories() {
        return categoryRepository.findAll();
    }

    @Override
    public Mono<Category> getCategoryById(Long id) {
        return categoryRepository.findById(id);
    }

    @Override
    public Mono<Category> createCategory(Category category) {
        return getNextSequenceId().map(id -> {
            category.setId(id);
            return category;
        }).flatMap(categoryRepository::save);
    }

    @Override
    public Mono<Category> updateCategory(Long id, Category updatedCategory) {
        return categoryRepository.findById(id)
                .flatMap(category -> {
                    category.setTitle(updatedCategory.getTitle());
                    category.setPosts(updatedCategory.getPosts());
                    return categoryRepository.save(category);
                });
    }

    @Override
    public Mono<Void> deleteCategory(Long id) {
        return categoryRepository.deleteById(id);
    }

    @Override
    public Mono<Void> deleteAllCategories() {
        return categoryRepository.deleteAll();
    }

    private Mono<Long> getNextSequenceId() {
        return sequenceRepository.findById("categoryId")
                .map(sequence -> {
                    long nextValue = sequence.getValue() + 1;
                    sequence.setValue(nextValue);
                    return sequence;
                })
                .defaultIfEmpty(new Sequence("categoryId", 1))
                .flatMap(sequenceRepository::save)
                .map(Sequence::getValue);
    }

}

Controller

package com.henry.controller;

import com.henry.model.Category;
import com.henry.resolver.CategoryResolver;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.graphql.data.method.annotation.Argument;
import org.springframework.graphql.data.method.annotation.QueryMapping;
import org.springframework.graphql.data.method.annotation.SchemaMapping;
import org.springframework.stereotype.Controller;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@Controller
public class CategoryController {

    private final CategoryResolver categoryResolver;

    @Autowired
    public CategoryController(CategoryResolver categoryResolver) {
        this.categoryResolver = categoryResolver;
    }

    @QueryMapping
    public Flux<Category> getAllCategories() {
        return categoryResolver.getAllCategories();
    }

    @QueryMapping
    public Mono<Category> getCategoryById(@Argument Long id) {
        return categoryResolver.getCategoryById(id);
    }

    @SchemaMapping(typeName = "Mutation", field = "createCategory")
    public Mono<Category> createCategory(@Argument(name = "input") Category category) {
       return categoryResolver.createCategory(category);
    }

    @SchemaMapping(typeName = "Mutation", field = "updateCategory")
    public Mono<Category> updateCategory(@Argument Long id, @Argument(name = "input") Category updatedCategory) {
        return categoryResolver.updateCategory(id, updatedCategory);
    }

    @SchemaMapping(typeName = "Mutation", field = "deleteCategory")
    public Mono<Void> deleteCategory(@Argument Long id) {
        return categoryResolver.deleteCategory(id);
    }

    @SchemaMapping(typeName = "Mutation", field = "deleteAllCategories")
    public Mono<Void> deleteAllCategories() {
        return categoryResolver.deleteAllCategories();
    }
}

Downloading an installing MongoDB in Ubuntu
Create a docker-compose-mongodb.yml file with the following contents:

version: "2.0"
services:
  mongodb_container:
    image: mongo:latest
    environment:
      MONGO_INITDB_ROOT_USERNAME: test
      MONGO_INITDB_ROOT_PASSWORD: test
      MONGO_INITDB_DATABASE: tech_notes
    ports:
      - 27017:27017
    volumes:
      - mongodb_data_container:/data/db

volumes:
  mongodb_data_container:

Run the following command to start the MongoDB container:

 docker-compose -f docker-compose-mongodb.yml up -d

Run & Test

Run Spring Boot application with command: mvn spring-boot:run. by console, IntelliJ etc.

Postman

POST

http://localhost:8080/graphql

createCategory query:

mutation {
  createCategory(
    input: {
      title: "Java"
      posts: [
        "Spring Data Reactive With MongoDB and GrahpQL"
        "Angular 16  Spring Boot 3 Spring Data GraphQL CRUD"
        "Spring Boot 3 Spring Data GraphQL CRUD"
        "Spring Boot 3 Spring Data  Elasticsearch "
      ]
    }
  ) {
    id
    title
    posts
  }
}

updateCategory query:

mutation {
  updateCategory(
    id: 2
    input: {
      title: "Java"
      posts: [
        "Spring Data Reactive With MongoDB and GrahpQL"
        "Spring Security 6 Custom Login, OAuth2 Login with Google and Basic Auth"
        "Spring Boot 3 Spring Data GraphQL CRUD"
        "Spring Boot 3 Spring Data  Elasticsearch "
      ]
    }
  ) {
    id
    title
    posts
  }
}

deleteCategory query:

mutation {
  deleteCategory(
    id: 2
   )
}

deleteAllCategories query:

mutation {
  deleteAllCategories
}

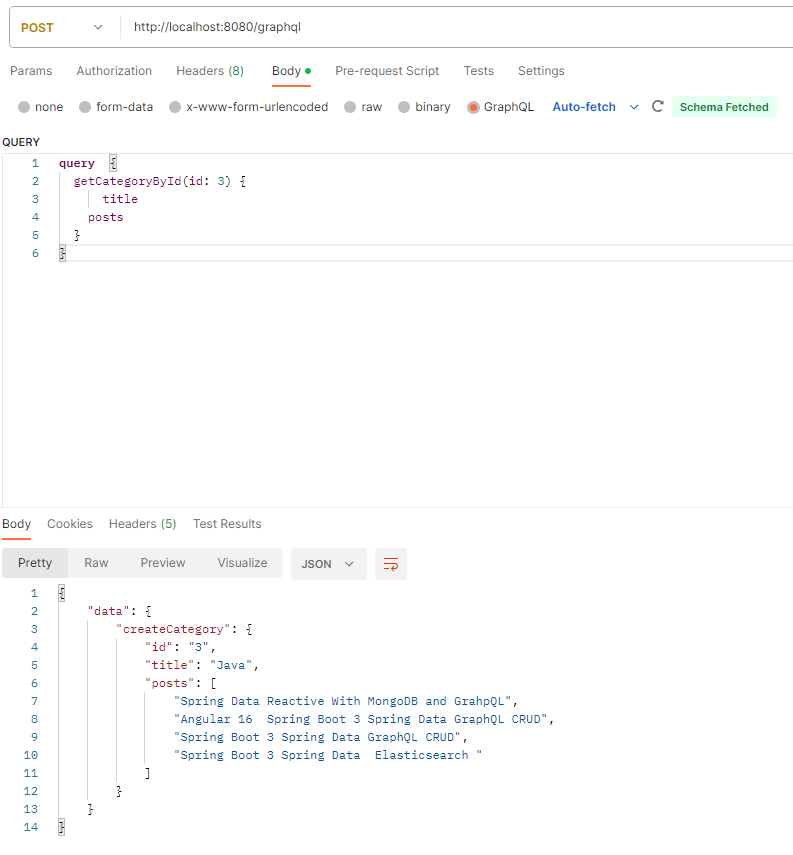

getCategoryById query:

query  {
  getCategoryById(id: 3) {
      title
    posts
  }
}

getAllCategories query:

query {
  getAllCategories
  {
    id
    title
    posts
  }
}

Source Code

Here on GitHub.

References:

Spring Data MongoDB - Reference Documentation

TechNotes Central

Saturday, July 1, 2023

Spring Data Reactive With MongoDB and GrahpQL

Technology

Configuration Spring Boot project :

application.yml:

Schema

Spring Data Reactive GraphQL Application

Config

Model

Repository

Service

Resolver

Downloading an installing MongoDB in Ubuntu

Run & Test

Source Code

References:

No comments:

Post a Comment

Provisioning Cloud SQL with Private Service Connect Using Terraform & Accessing from Cloud Run with Spring Boot
